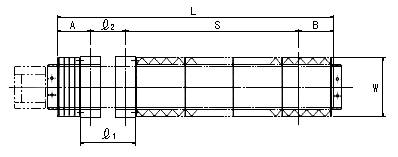

단위 : mm
|
|
레일길이
L |
스트로크 길이
S |
MIN/MAX |
모타측
A |
반모타측
B |
W |
 1
|
2 |
| KR 33 |
150 |
31.2 |
14/51 |
36 |
32.3 |
84 |
79 |
50.5 |
|
200 |
78.2 |
17/98 |
36 |
35.3 |
|
300 |
154.9 |
30/185 |
46.3 |
48.3 |
|
400 |
234.9 |
40/275 |
56.3 |
58.3 |
|
500 |
304.9 |
55/360 |
71.3 |
73.3 |
|
600 |
384.9 |
65/450 |
81.3 |
83.3 |
| KR 46 |
340 |
142.9 |
29.5/167.5 |
62.3 |
62.3 |
110 |
116 |
72.5 |
|
440 |
222.9 |
39.5/262.5 |
72.3 |
72.3 |
|
540 |
292.9 |
54.5/347.5 |
87.3 |
87.3 |
|
640 |
382.9 |
59.5/442.5 |
92.3 |
92.3 |
|
740 |
452.9 |
74.5/527.5 |
107.3 |
107.3 |
|
940 |
612.9 |
94.5/707.5 |
127.3 |
127.3 | |
