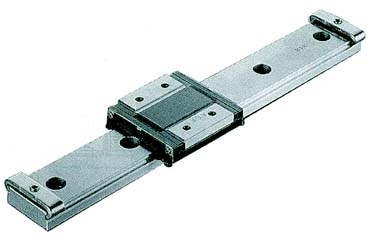

LM가이드 RSR-WZM형

▶ LM GUIDE: RSR-WZM

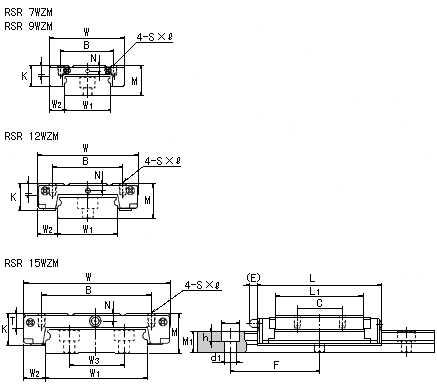

Model No.	External dimensions			LM-block dimensions
Model No.	height M	width W	length L	B	C	S×	L₁	T	K	N	E	grease nipple (oil hole)
RSR 7 WZM	9	25	31.5	19	10	M3×2.8	19.7	4.0	7.0	1.8	-	φ1.6 drilled hole
RSR 9 WZM	12	30	39	21	12	M3×2.8	27	4.5	9.1	2.3	-	φ1.6 drilled hole
RSR 12 WZM	14	40	44.5	28	15	M3×3.6	29.3	4.8	10.6	3	-	φ2 drilled hole
RSR 15 WZM	16	60	55.5	45	20	M4×4.5	39.3	5.7	12.6	3	3.6	driven-in nipple PB107

※ Download CAD Files

Model No.

LM-rail dimensions

Basic load rating

Mass

W₁

W₂

W₃

M₁

F

d₁×d₂×h

C
kN

C_0
kN

LM block
kg

LM rail
kg/m

RSR 7 WZM

14

0
-0.05

5.5

-

5.2

30

3.5×6×3.2

1.37

2.16

0.018

0.51

RSR 9 WZM

18

0
-0.05

6

-

7.5

30

3.5×6×4.5

2.45

3.92

0.030

1.08

RSR 12 WZM

24

0
-0.05

8

-

8.5

40

4.5×8×4.5

4.02

6.08

0.060

1.5

RSR 15 WZM

42

0
-0.05

9

23

9.5

40

4.5×8×4.5

6.66

9.80

0.135

3.0
