¢ºLM GUIDE SHS-C(Heavy load type)   SHS-LC(Ultra-heavy-load type)

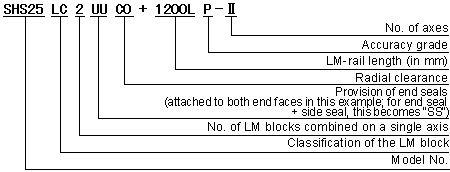

Model No.

External
dimensions

LM-block dimensions

height
M

width
W

length
L

B

C

S

H

L1

T

T1

K

N

E

grease
nipple

SHS 15 C
SHS 15 LC

24

47

64.4
79.4

38

30

M5

4.4

48
63

6

8

21

5.5

5.5

PB1021B

SHS 20 C
SHS 20 LC

30

63

79
98

53

40

M6

5.4

59
78

7.2

10

25.4

6.5

12

B-M6F

SHS 25 C
SHS 25 LC

36

70

92
109

57

45

M8

6.8

71
88

9

12

30.2

7.5

12

B-M6F

SHS 30 C
SHS 30 LC

42

90

106
131

72

52

M10

8.5

80
105

12

15

35

8

12

B-M6F

SHS 35 C
SHS 35 LC

48

100

122
152

82

62

M10

8.5

93
123

12

15

40.5

8

12

B-M6F

SHS 45 C
SHS 45 LC

60

120

140
174

100

80

M12

10.5

106
140

14

18

51.1

10.5

16

B-PT1/8

SHS 55 C
SHS 55 LC

70

140

171
213

116

95

M14

12.5

131
173

17

21

57.3

11

16

B-PT1/8

SHS 65 C
SHS 65 LC

90

170

221
272

142

110

M16

14.5

175
226

20

24

71

19

16

B-PT1/8

           ¡Ø Download CAD Files

Model No.

Pilot hole for
the side nipple

LM-rail dimensions

Basic load rating

Mass

U

J

D

width

W1

 0
-0.05

W2

height
M
1

pitch
F

d1×d2×h

C
kN

C0
kN

LM block
kg

LM rail
kg/m

SHS 15 C
SHS 15 LC

4.2

4

3

15

16

13

60

4.5×7.5×5.3

9.8
12.5

24.2
31.9

0.23
0.29

1.3

SHS 20 C
SHS 20 LC

5.7

5.3

3

20

21.5

16.5

60

6×9.5×8.5

15.9
20.9

38.4
50.3

0.46
0.61

2.3

SHS 25 C
SHS 25 LC

4.5

5.5

3

23

23.5

20

60

7×11×9

22.1
27.3

52.4
64.7

0.72
0.89

3.2

SHS 30 C
SHS 30 LC

7.5

6

5.2

28

31

23

80

9×14×12

30.8
38.9

66.6
88.8

1.34
1.66

4.5

SHS 35 C
SHS 35 LC

8

5.5

5.2

34

33

26

80

9×14×12

42.5
55.9

96.6
127

1.9
2.54

6.2

SHS 45 C
SHS 45 LC

9

8

5.2

45

37.5

32

105

14×20×17

56.4
74.2

126
166

3.24
4.19

10.4

SHS 55 C
SHS 55 LC

10

8

5.2

53

43.5

38

120

16×23×20

90.5
119

197
259

5.35
6.97

14.5

SHS 65 C
SHS 65 LC

13

12

5.2

63

53.5

53

150

18×26×22

150
192

320
408

10.7
13.7

23.7
