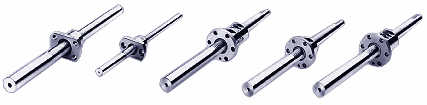

| Screw shaft OD(mm) |
¥õ4¡14 |
| Nut
Type |
Type MDK |
Type MBF |
|
Non-preloaded
type
|
Non-preloaded
type
|
| Accuracy grade |
C3, C5 |
C7 |
C3, C5 |
C7 |
| Axial Clearance(mm) |
0.005 max.(GT) |
0.02 max.(G2) |
0.005 max.(GT) |
0.02 max.(G2) |
| Preload |
- |
- | |
|
Note) 1. A symbol in parentheses under "Axial clearance" indicates an axial
clearance. |
| Screw shaft OD(mm) |
¥õ16¡50 |
| Nut
Type |
Type BIF |
Type BNFN |
Type BNF |
|
Preloaded
type
|
Preloaded
type
|
Non-preloaded
type
|
| Accuracy grade |
C 5 |
C 7 |
C 5 |
C 7 |
C 5 |
C 7 |
| Axial Clearance(mm) |
0 max.(G0) |
0 max.(G0) |
0 max.(G0) |
0 max.(G0) |
0.01max.(G1) |
0.02 max.(G2) |
| Preload |
0.05Ca |
0.05Ca |
0.05Ca |
0.05Ca |
- |
- | |
|
Note) 1. A symbol in parentheses under "Axial clearance" indicates an axial clearance.
2. "Ca" in a preload value represents the basic dynamic load rating. |
