▶LM GUIDE- CSR








Model No

External
dimensions

LM-block dimensions

height
M

width
W


L

H

B

B1

n-S×

J

A

T

C

G

K

N

E

grease
nipple

CSR 15

47

38.8

56.5

20

-

9.4

2-M4×0.7×6

34.8

-

-

11.3

32

3.5

19.5

5.5

PB1021B

CSR 20 S
CSR 20

57

50.8
66.8

74
90

30
56

-
28

10.4
5.4

2-M5×0.8×8
5-M5×0.8×8

42.5
37

-
13

-
24

13.3
7.8

42

4.0

25

12

B-M6F

CSR 25 S
CSR 25

70

59.5
78.6

83
102.5

34
64

-
32

12.75
7.3

2-M6×10
5-M6×10

52
44

-
18

-
26

17
9

46

5.5

30

12

B-M6F

CSR 30 S
CSR 30

82

70.4
93

98
120.5

40
76

-
38

15.2
8.5

2-M6×10
5-M6×10

61
53

-
21

-
32

20
12

58

7.0

35

12

B-M6F

CSR 35

95

105.8

135

90

45

7.9

5-M8×14

61

24

37

14

68

7.5

40

12

B-M6F

CSR 45

118

129.8

171

110

55

9.9

5-M10×15

75

30

45

16

84

10.0

50

16

B-PT1/8

             ※ Download CAD Files

Model No.

LM-rail dimensions

Basic load rating

Mass

width
W1
±0.05

W2

B2

height
M1

pitch
F

d×D×h

C
kN

C0
kN

LM block
kg

LM rail
kg/m

CSR 15

15

26.9

7.5

15

60

4.5×7.5×5.3

8.33

13.5

0.34

1.5

CSR 20 S
CSR 20

20

35.4
43.4

10

18

60

6×9.5×8.5

13.8
21.3

23.8
31.8

0.73
1.3

2.3

CSR 25 S
CSR 25

23

41.25
50.8

11.5

22

60

7×11×9

19.9
27.2

34.4
45.9

1.2
2.2

3.3

CSR 30 S
CSR 30

28

49.2
60.5

14

26

80

9×14×12

28.0
37.3

46.8
62.5

2.0
3.6

4.8

CSR 35

34

69.9

17

29

80

9×14×12

50.2

81.5

5.3

6.6

CSR 45

45

87.4

22.5

38

105

14×20×17

80.4

127.5

9.8

11.0

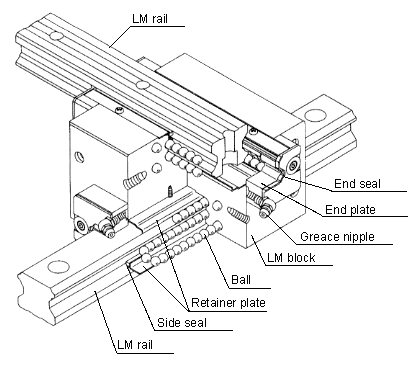

Construction of Model CSR
