¢º Products : LM Guide >THK LM Guide > Actuator type KR > 2602 (without a cover)

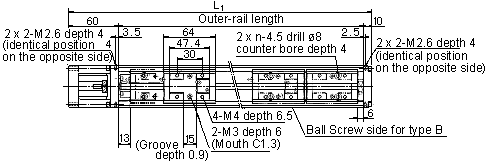

      KR2602A (with one long block)
      KR2602B (with two long blocks)





  Nipple direction



Outer-rail
length		 Overall length
L1

KR2602A

KR2602B

G

n
Possible stroke range Possible stroke range

150

220

69

£­

35

2

200

270

119

55

20

3

250

320

169

105

45

3

300

370

219

155

30

4

              ¡Ø Download CAD Files

              ¡Ø The possible stroke range of model KR2602B is the value for closely linked double blocks.
