¢º Products : LM Guide >THK LM Guide > Actuator type KR > 5520¡à (without a cover)

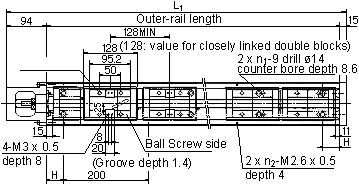

      KR5520A (With one long block)
      KR5520B (With two long blocks)





  Nipple direction



Outer-rail
length
Overall
length

L
1

KR5520A

KR5520B

H

G

n1

n2

Possible stroke range Possible stroke range

980

1089

826

698

90

40

7

5

1080

1189

926

798

40

15

8

6

1180

1289

1026

898

90

65

8

6

1280

1389

1126

998

40

40

9

7

1380

1489

1226

1098

90

15

10

7

          ¡Ø Download CAD Files
          ¡ØThe possible stroke range of model KR5520B is the value for closely linked double blocks.
