¢º Products : LM Guide >THK LM Guide > Actuator type KR > KR 6525¡à (without a cover)

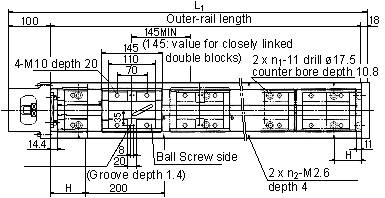

      KR6525A (With one long block)
      KR6525B (With two long blocks)





  Nipple direction





Outer-rail
length		 Overall
length
L1

KR5520A

KR5520B

H

G

n1

n2
Possible stroke range Possible stroke range

980

1098

810

665

90

40

7

5

1180

1298

1010

865

90

65

8

6

1380

1198

1210

1065

90

90

9

7

1680

1798

1510

1365

40

90

11

9

          ¡Ø Download CAD Files
          ¡ØThe possible stroke range of model KR6525B is the value for closely linked double blocks.
