Halder norm+technik -EH 2207 (긴형)
|
| |
|

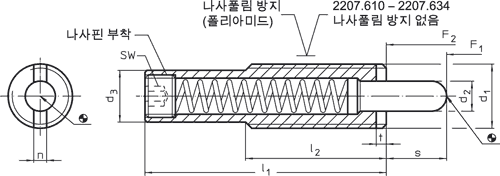

EH 2207. 스프링 플런져 (긴형)
|
| |
|
|
|
| |
|
|
재질:
|
몸체:-스틸, 흑색처리
-열처리스틸, 흑색처리
|
핀:-스틸, 표면-경화처리,
흑색처리
|
스프링: -스텐레스 스틸
|
|
특징: 강화된 스프링력 = 나사핀, 밝은색
|
|
참조:제품을 탈착 할 때, 혹은 압력을 가하거나 들어올릴 때 사용.
스프링 플런져들은 일자홈이나 육각렌지로 고정한다.
|
|
| |
|
|
|
| |
|
| |
 |
| |
|
| |
|
스틸 몸체, 일반 하중 스프링
|
|
부품번호
|
d1
|
s
|
d2
|
d3
|
l1
|
l2
|
n
|
t
|
WS
|
스프링력
F1
N~
|
스프링력
F2
N~
|
g
|
|
2207.408
|
M10
|
8
|
4,0
|
7,8
|
35
|
25
|
1,5
|
1,4
|
3
|
6,0
|
16
|
15
|
|
2207.412
|
M12
|
10
|
5,5
|
9,5
|
43
|
35
|
2,7
|
2,0
|
4
|
4,0
|
18
|
23
|
|
2207.430
|
M16
|
10
|
8,0
|
13,4
|
48
|
35
|
3,2
|
3,0
|
6
|
7,0
|
24
|
42
|
|
2207.432
|
M16
|
10
|
8,0
|
13,4
|
58
|
35
|
3,2
|
3,0
|
6
|
15,0
|
42
|
53
|
|
2207.436
|
M16
|
15
|
8,0
|
13,4
|
58
|
35
|
3,2
|
3,0
|
6
|
9,0
|
33
|
55
|
|
2207.440
|
M16
|
20
|
8,0
|
13,4
|
58
|
35
|
3,2
|
3,0
|
6
|
4,0
|
23
|
57
|
|
2207.442
|
M16
|
20
|
8,0
|
13,4
|
83
|
35
|
3,2
|
3,0
|
6
|
11,0
|
43
|
71
|
|
2207.444
|
M16
|
25
|
8,0
|
13,4
|
98
|
35
|
3,2
|
3,0
|
6
|
13,0
|
41
|
78
|
|
2207.450
|
M16
|
30
|
8,0
|
13,4
|
98
|
35
|
3,2
|
3,0
|
6
|
13,0
|
47
|
80
|
|
2207.452
|
M16
|
30
|
8,0
|
13,4
|
118
|
35
|
3,2
|
3,0
|
6
|
24,0
|
110
|
95
|
|
2207.455
|
M16
|
40
|
8,0
|
13,4
|
148
|
35
|
3,2
|
3,0
|
6
|
13,0
|
63
|
123
|
|
2207.460
|
M16
|
50
|
8,0
|
13,4
|
148
|
35
|
3,2
|
3,0
|
6
|
7,0
|
43
|
127
|
|
2207.480
|
M24
|
15
|
10,0
|
19,6
|
60
|
45
|
3,7
|
3,0
|
8
|
14,0
|
87
|
115
|
|
| |
|
| |
|
스틸 몸체, 초 중하중 스프링
|
| 부품번호 |
d1 |
s |
d2 |
d3 |
l1 |
l2 |
n |
t |
WS |
스프링력
F1
N~ |
스프링력
F2
N~ |
g
|
|
2207.512
|
M12
|
10
|
5,5
|
9,5
|
43
|
35
|
2,7
|
2,0
|
4
|
7,0
|
46
|
23
|
|
2207.530
|
M16
|
10
|
8,0
|
13,4
|
48
|
35
|
3,2
|
3,0
|
6
|
10,0
|
43
|
42
|
|
2207.532
|
M16
|
10
|
8,0
|
13,4
|
58
|
35
|
3,2
|
3,0
|
6
|
14,0
|
84
|
53
|
|
2207.536
|
M16
|
15
|
8,0
|
13,4
|
58
|
35
|
3,2
|
3,0
|
6
|
10,0
|
57
|
55
|
|
2207.542
|
M16
|
20
|
8,0
|
13,4
|
83
|
35
|
3,2
|
3,0
|
6
|
18,0
|
72
|
71
|
|
2207.544
|
M16
|
25
|
8,0
|
13,4
|
98
|
35
|
3,2
|
3,0
|
6
|
20,0
|
70
|
78
|
|
2207.550
|
M16
|
30
|
8,0
|
13,4
|
98
|
35
|
3,2
|
3,0
|
6
|
20,0
|
80
|
80
|
|
2207.555
|
M16
|
40
|
8,0
|
13,4
|
148
|
35
|
3,2
|
3,0
|
6
|
21,0
|
113
|
123
|
|
2207.560
|
M16
|
50
|
8,0
|
13,4
|
148
|
35
|
3,2
|
3,0
|
6
|
13,0
|
75
|
127
|
|
2207.580
|
M24
|
15
|
10,0
|
19,6
|
60
|
45
|
3,7
|
3,0
|
8
|
24,0
|
192
|
115
|
|
| |
|
| |
|
열처리 스틸 몸체, 일반 하중 스프링, 잠금장치 없음
|
| 부품번호 |
d1 |
s |
d2 |
d3 |
l1 |
l2 |
n |
t |
WS |
스프링력
F1
N~ |
스프링력
F2
N~ |
g
|
|
2207.610
|
M16
|
11
|
7,3
|
13,4
|
80
|
35
|
3,2
|
3,0
|
8
|
17,0
|
74
|
75
|
|
2207.612
|
M16
|
21
|
7,3
|
13,4
|
120
|
35
|
3,2
|
3,0
|
8
|
21,0
|
81
|
100
|
|
2207.614
|
M16
|
31
|
7,3
|
13,4
|
150
|
35
|
3,2
|
3,0
|
8
|
21,0
|
89
|
125
|
|
2207.616
|
M16
|
41
|
7,3
|
13,4
|
200
|
35
|
3,2
|
3,0
|
8
|
16,0
|
80
|
170
|
|
2207.630
|
M22
|
21
|
9,0
|
19,0
|
130
|
50
|
3,5
|
4,0
|
8
|
80,0
|
214
|
215
|
|
2207.632
|
M22
|
31
|
9,0
|
19,0
|
168
|
50
|
3,5
|
4,0
|
8
|
70,0
|
210
|
280
|
|
2207.634
|
M22
|
41
|
9,0
|
19,0
|
226
|
50
|
3,5
|
4,0
|
8
|
76,0
|
208
|
360
|
|
| |
|
| |
 |
|
