 ¢º NSK Ball Screw : Features od NSK BALL SCREWS



4 Superb durability

NSK uses thoroughly purified alloy steel, and applies

special case hardening heat treatment to it for

superb durability.


5 No backlash, and unparalleled rigidity

NSK ball screws use gothic-arch groove as shown in

Fig. I-1.1. Providing controlled preload is easy, thanks

to this gothic-arch groove, and appropriate rigidity

with no backlash can be obtained. As the Gothic-arch

also minimizes the clearance between the balls and

the groove, the back lash is controlled to minimal

without applying preload.

Groove Shape of NSK Precision Ball Screw

1 Quick delivery

Standardized items are in stock for short lead time.

• Precision ball screws: A Series, KA Series


S Series, V Series

• Rolled ball screws:

R Series


2 Competitive prices

NSK reduces cost by well-planned mass production

of standardized items. We rank the best in the world

production of ordered items. We are able to offer our

products at competitive prices by producing similar

items in the same production group.


3 Unparalleled accuracy

When the accuracy is required, NSK utilizes its

unique grinding technique and measuring

equipment for the product in the topnotch precision.



(1) Example of reference number of A/S Series ball screw



(2) Example of reference number of V Series ball screw

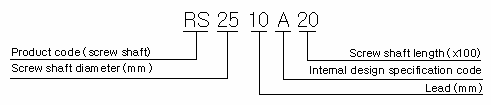

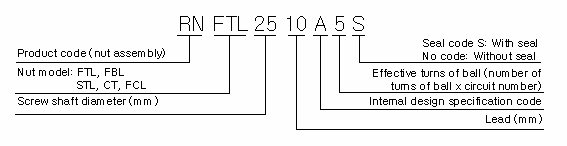

(3) Example of reference number for a rolled ball screw
