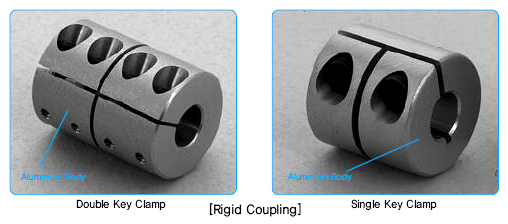

▶ Kosa Rigid Coupling

The compact accurate RIGID COUPLING of SI is one-piece structure.
RIGID COUPLING can be used as joint to connect with two shafts. The major characteristic of RIGID COUPLING is that it provides perfect efficiency at any condition that is low and high speed and high torque but that is not flexible. RIGID COUPLING is not accepted amplitude eccentricity and misalignment between one shat and the other shaft. Therefore please arrange the shaft perfectly for protection of coupling and machinery.

Features

Zero backlash.

Maintenance free and excellent resistance against oil
and chemicals.

Light weight, extremely low inertia.

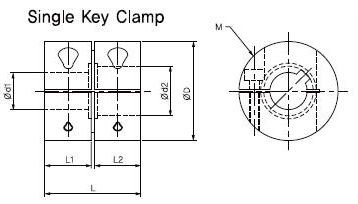

Model No.	DIMENSION(±0.3)							Moment of Inertia kgf xm²	Rated Torque N.m	Max RPM (min)	Standard Inner dia d1, d2
Model No.	D	d1	d2	L	L1	L2	M	Moment of Inertia kgf xm²	Rated Torque N.m	Max RPM (min)	Standard Inner dia d1, d2
KRC-16SC	16	3	6	16	7.5	7.5	M2	9.1x10^-7	0.3	15,000	3,4,5,6
KRC-25SC	25	5	10	20	9.5	9.5	M2.5	9.3x10^-6	1	15,000	5,6,8,10
KRC-32SC	32	8	12	25	12	12	M4	2.8x10^-6	2	15,000	8,10,11,12
KRC-40SC	40	12	16	32	15.5	15.5	M5	1.9x10^-5	3	15,000	12,14,15,16

※ Download CAD Files

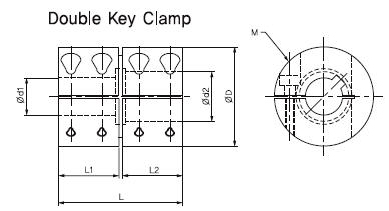

Model No.	DIMENSION(±0.3)							Moment of Inertia kgf xm²	Rated Torque N.m	Max RPM (min)	Standard Inner dia d1, d2
Model No.	D	d1	d2	L	L1	L2	M	Moment of Inertia kgf xm²	Rated Torque N.m	Max RPM (min)	Standard Inner dia d1, d2
KRC-16DC	16	3	6	22	10.5	10.5	M2	9.1x10^-7	0.3	15,000	3,4,5,6
KRC-25DC	20	5	10	24	11.5	11.5	M2.5	9.3x10^-6	1	15,000	5,6,8,10
KRC-32DC	25	8	12	36	17.5	17.5	M4	2.8x10^-6	2	15,000	8,10,11,12
KRC-40DC	32	12	16	40	19.5	19.5	M5	1.9x10^-5	3	15,000	12,14,15,16
