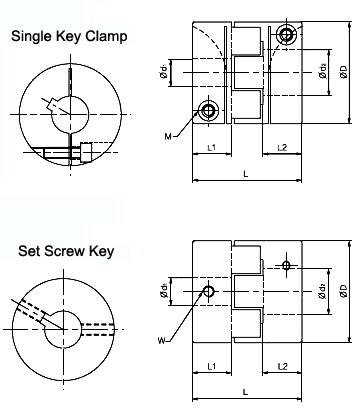

Product No.
|
D
|
d1
|
d2
|
L
|
L1
|
L2
|
M
|
W
|
Wrench
Torque
(N.m)
|
|
KJC-14SC
|
14
|
3
|
5
|
21
|
7
|
7
|
M2
|
M3
|
0.7
|
|
KJC-20SC
|
20
|
5
|
8
|
29.2
|
10
|
10
|
M2.5
|
M4
|
1.8
|
|
KJC-30SC
|
30
|
7
|
12
|
33.6
|
12
|
12
|
M4
|
M5
|
4
|
|
KJC-40SC
|
40
|
10
|
16
|
54
|
20
|
20
|
M5
|
M6
|
4.9
|
|
KJC-55SC
|
55
|
15
|
25
|
66.4
|
25
|
25
|
M6
|
M6
|
17
|
|
KJC-60SC
|
65
|
15
|
25
|
78
|
30
|
30
|
M8
|
M8
|
46
|
|
KJC-80SC
|
80
|
28
|
38
|
91.4
|
35
|
35
|
M8
|
M8
|
95
|
|
KJC-95SC
|
95
|
40
|
45
|
104
|
40
|
40
|
M10
|
M10
|
130
|
|
Product No.
|
Max. Rotationa
Frequencyl
(min–1)
|
Moment
of Inertia
(kg.m²
|
Static Torsional
Stiffness
(N.m/rad)
|
Errors of
Eccentricity
(mm)
|
Errors of
Angularity
(°)
|
|
KJC-14SC
|
10,000
|
2.1x10
|
8
|
0.15
|
1.0
|
|
KJC-20SC
|
10,000
|
1.0x10
|
16
|
0.2
|
1.0
|
|
KJC-30SC
|
10,000
|
5.9x10
|
46
|
0.2
|
1.0
|
|
KJC-40SC
|
10,000
|
4.0x10
|
380
|
0.2
|
1.0
|
|
KJC-55SC
|
10,000
|
1.7x10
|
1,400
|
0.2
|
1.0
|
|
KJC-60SC
|
9,000
|
3.9x10
|
2,800
|
0.2
|
1.0
|
|
KJC-80SC
|
7,000
|
1.1x10
|
3,200
|
0.2
|
1.0
|
|
KJC-95SC
|
6,000
|
2.4x10
|
3,600
|
0.2
|
1.0
|
|
