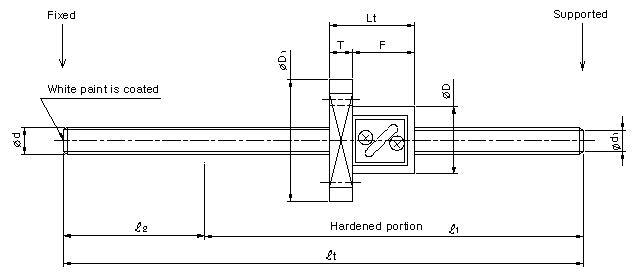

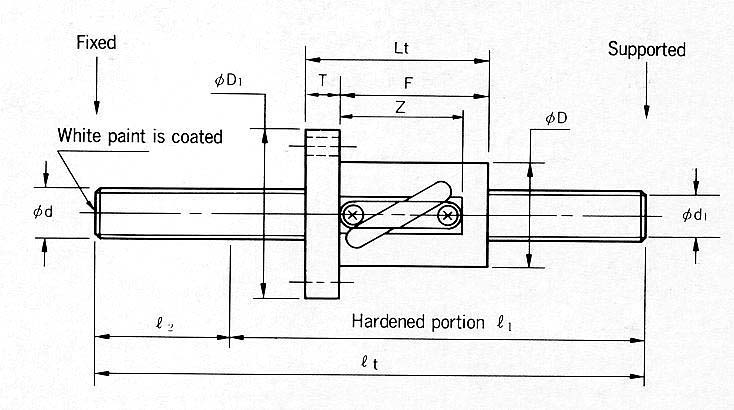

 ¢º KURODA BALL SCREW GY SERIES (M-NUT)








Model number

Outside
diameter

d

Lead


L

Screw Shaft

Nut size

Basic
load rating

Thread
length

§¤1

Overall
length
§¤t

Shaft
end
length
§¤2

Outside
diameter
D

Flange size

Overall
length
Lt

Body
length
F

Outside
diameter
D1

T

P.C.D.
P

Width
W

C
(daN)

Co
(daN)

GY0802GS-HGNR-

0200

400 A

8

2

 145

200

55

20

28

22

40

6

30

 24

 180

 320

 345

400

GY102FGS-HGNR-

0400

600 A

10

2.5

 340

400

60

24

32

24

44

8

34

 27

 260

 520

 540

600

GY1004DS-HANR-

0400

600 A

10

4

 340

400

60

26

34

26

46

8

36

 28

 230

 480

 540

600

GY1010AS-HANR-

0400

600 A

10

10

 340

400

60

28

34

26

47

8

36

 30

 185

 320

 540

600

GY1204DS-HANR-

0400

800 A

12

4

 340

400

60

30

35

27

50

8

40

 30

 260

 580

 740

800
