Ball Screw specifications

Lead (mm)

1

BCD (mm)

6.2

Thread minor diameter  (mm)

5.3

Threading direction/
no. of threaded grooves

Right-hand, 1

No. of circuits

3 rowsX 1 turn

Clearance symbol

G0

GT

G2

Axial clearance (mm)

0

0.005 Max

0.02 Max

Basic dynamic load rating Ca(kN)

0.54

Basic static load rating C0a(kN)

0.94

Preload torque (N·m)

¡­1.3×10-2

-

Spacer ball

None





Unit : mm

1kN¡Ö102kgf

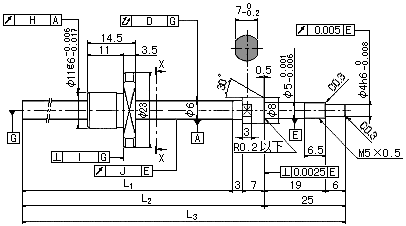

Ball Screw model No.

Stroke

Screw-shaft length

Screw-shaft
longitudinal-axis
runout

D

Nut
circumferential
runout

H

Flange
perpen-
dicularity

I

Shaft
thread
runout

J

L1

L2

L3

BNK 0601-3G0 + 100LC3Y

40

65

75

100

0.015

0.009

0.008

0.008

BNK 0601-3G0 + 100LC5Y

0.025

0.012

0.010

0.010

BNK 0601-3G2 + 100LC7Y

0.035

0.020

0.014

0.014

BNK 0601-3G0 + 130LC3Y

70

95

105

130

0.020

0.009

0.008

0.008

BNK 0601-3G0 + 130LC5Y

0.035

0.012

0.010

0.010

BNK 0601-3G2 + 130LC7Y

0.050

0.020

0.014

0.014

BNK 0601-3G0 + 160LC3Y

100

125

135

160

0.025

0.009

0.008

0.008

BNK 0601-3G0 + 160LC5Y

0.035

0.012

0.010

0.010

BNK 0601-3G2 + 160LC7Y

0.050

0.020

0.014

0.014
