Ball Screw specifications

Lead (mm)

3

BCD (mm)

14.3

Thread minor diameter  (mm)

13.0

Threading direction/
no. of threaded grooves

Right-hand, 1

No. of circuits

3 rows X 1 turn

Clearance symbol

G0

GT

G2

Axial clearance (mm)

0

0.005 Max

0.02 Max

Basic dynamic load rating Ca(kN)

1.8

Basic static load rating C0a(kN)

4.3

Preload torque (N·m)

4.9×10-3¡­4.9×10-2

-

Spacer ball

None







Unit : mm

1kN¡Ö102kgf

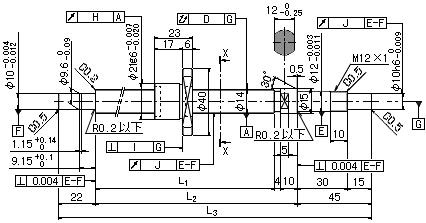

Ball Screw model No.

Stroke

Screw-shaft length

Screw-shaft
longitudinal-axis
runout

D

Nut
circumferential
runout

H

Flange
perpen-
dicularity

I

Shaft
thread
runout

J

L1

L2

L3

BNK 1402-3RRG0+166LC3Y

50

85

99

166

0.020

0.010

0.008

0.009

BNK 1402-3RRG0+166LC5Y

0.025

0.012

0.010

0.012

BNK 1402-3RRG2+166LC7Y

0.040

0.020

0.014

0.014

BNK 1402-3RRG0+216LC3Y

100

135

149

216

0.025

0.010

0.008

0.009

BNK 1402-3RRG0+216LC5Y

0.030

0.012

0.010

0.012

BNK 1402-3RRG2+216LC7Y

0.045

0.020

0.014

0.014

BNK 1402-3RRG0+266LC3Y

150

185

199

266

0.025

0.010

0.008

0.009

BNK 1402-3RRG0+266LC5Y

0.030

0.012

0.010

0.012

BNK 1402-3RRG2+266LC7Y

0.045

0.020

0.014

0.014

BNK 1402-3RRG0+316LC3Y

200

235

249

316

0.030

0.010

0.008

0.009

BNK 1402-3RRG0+316LC5Y

0.040

0.012

0.010

0.012

BNK 1402-3RRG2+316LC7Y

0.055

0.020

0.014

0.014

BNK 1402-3RRG0+416LC3Y

300

335

349

416

0.040

0.010

0.008

0.009

BNK 1402-3RRG0+416LC5Y

0.050

0.012

0.010

0.012

BNK 1402-3RRG2+416LC7Y

0.060

0.020

0.014

0.014
